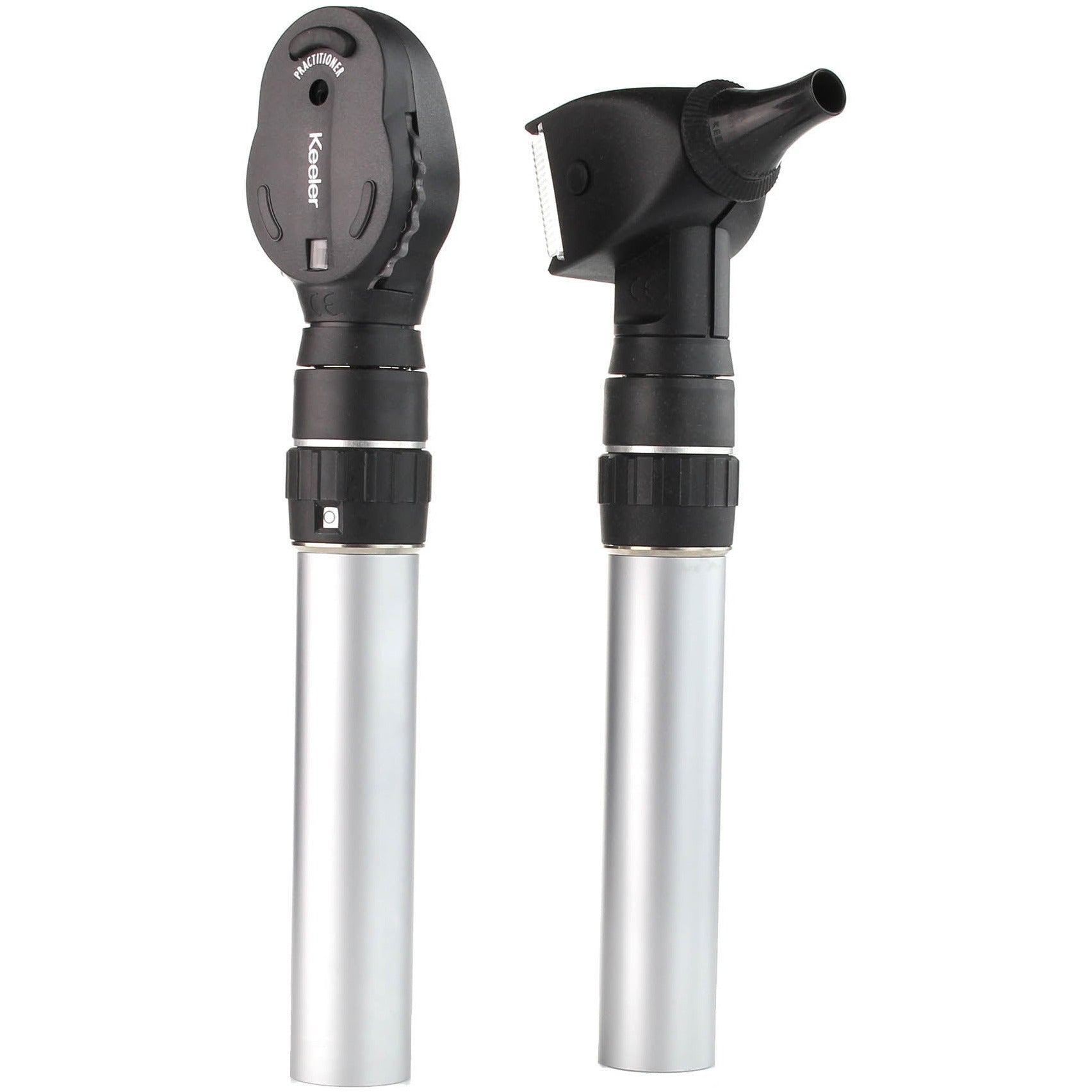

Keeler's top of the range battery powered diagnostic set ideally suited to the primary care professional.
The set consists of:
- 1x Premium fiber-optic otoscope.
- 1x Practitioner ophthalmoscope.
- 1x Rheostat controlled battery powered handle.
- 1x Hard carry case.
- 5x Re-usable speculae.
- 5x Disposable speculae.
- 2 Replacement bulbs.
Premium Fibre Optic Otosccope
- Large slide aside 2.5x lens for clear view of aural structures and foreign body removal procedures under magnification.
- Fibre optics produce a ring of even light for an unobstructed, glare-free view.
- Insufflation port for manipulation of the tympanic membrane (bulb not included)
- Soft brow-rest suitable for use with spectacles.
- Smooth, variable illumination strength and via the rheostat handle.
Practitioner Ophthalmoscope
- 6 apertures:
- Small - allows quick entry into small, undilated pupils.
- Medium- provides excellent view of fundus through an undilated pupil.
- Large - general examination of the eye through dilated pupil.
- Fixation Star - graduated cross-hairs for measuring eccentric fixation or locating lesions.
- Slit - used to determine levels of lesions and tumors.
- Cobalt blue - used with flourescein dye to view small lesions, abrasions and foreign objects on the cornea.
- 1 filter can be used in conjunction with any of the above apertures:
- Red-Free filter - filters out red light for easy identification of veins, arteries and nerve fibers.
- 28 focusing lenses with a range of -25 to +40 diopters, adjustable via easy-to-reach maywheel.
- Soft brow-rest suitable for use with spectacles.
- Smooth, variable illumination strength and via the rheostat handle.
